Hose Routing

Please note that the diagrams vary slightly for older, vs newer, models.

Also, these are CORRECTED diagrams... the ones in the manuals and on parts websites frequently show the tank petcock backwards.

1989 to 2000:

2001 to 2002:

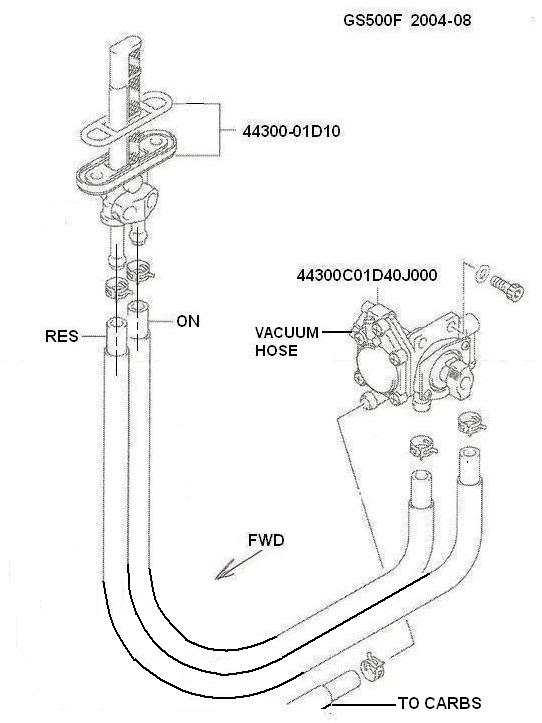

2004 to 2008:

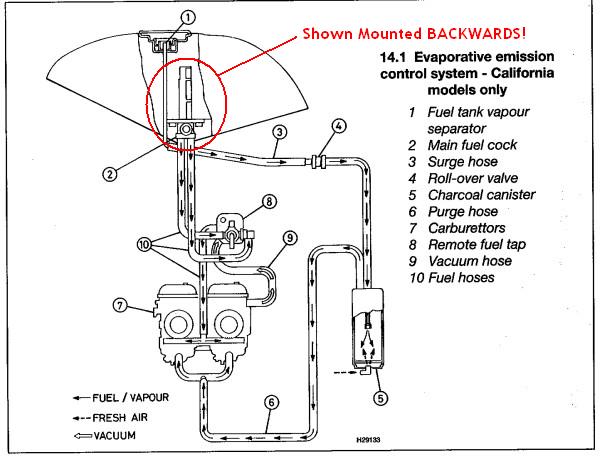

For (Older) California models, also note that there is also an extra vapour recovery "canister" thingie under the seat:

Also see Kerry's page
